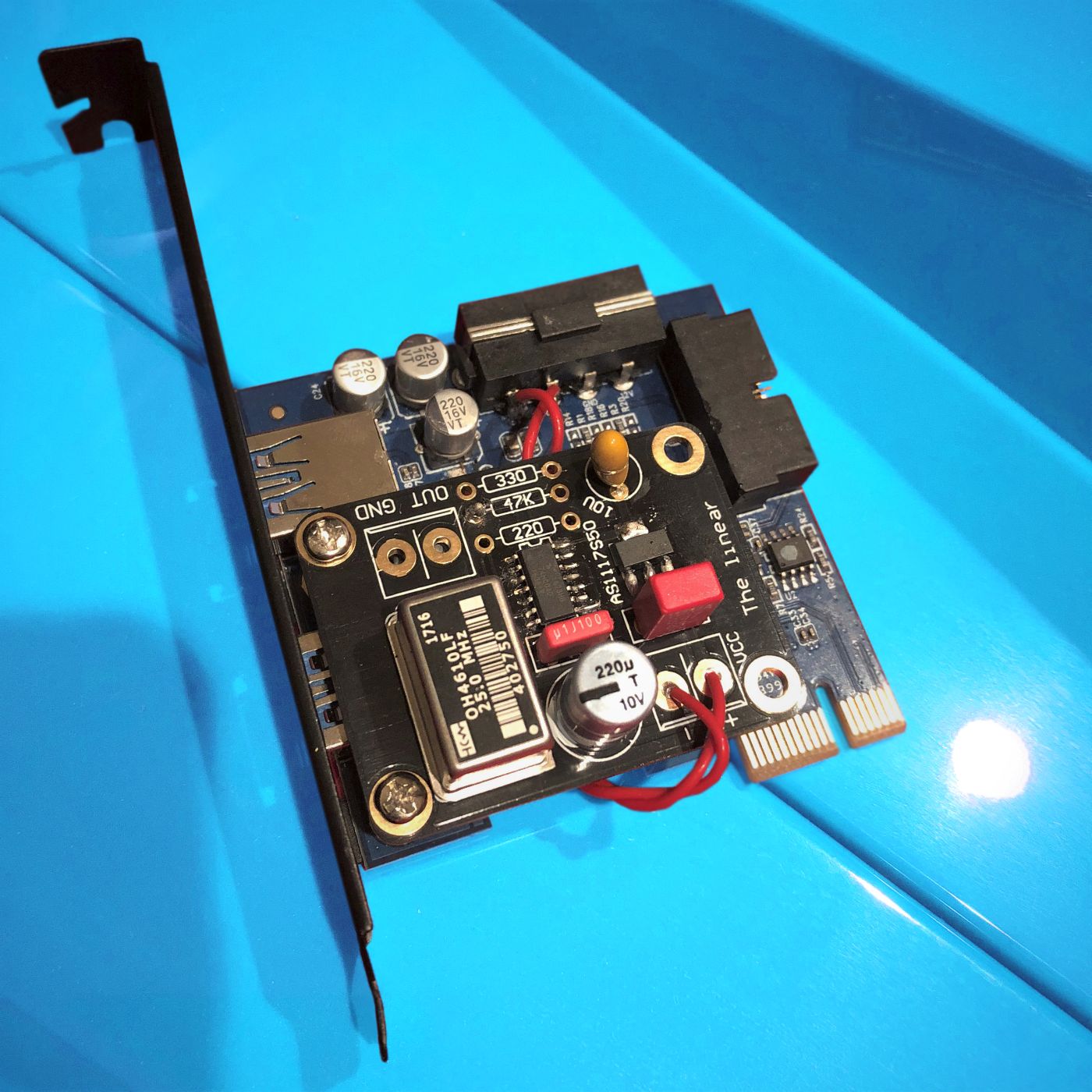

OCXO AUDIOPHILE
USB 3 ADAPTER

USB 3 ADAPTER - Specifications:
PCI express USB interface chip set

▪ USB 3.1 Compliant ASM host controller
▪ All Solid-state Capacitor, 4-Layer PCB
▪ Support (10Gbps) at USB 3.1 type C and Type -A 3.1 (Gen 2)
▪ Support SS(5Gbps),HS(480 Mbps),FS (12 Mbps),LS (1.5 Mbps)
▪ PCIe x1 Gen2 interface

Internal Power Input
▪ Input voltage : +5.0V (+0.5V, -0.5V)
▪ Input current : 2A
▪ 15pin SATA power connector

OCXO CIRCUIT

ULTRA HIGH PRECISION OCXO
The unit core features an (Oven Controlled Crystal Oscillator) OCXO. This OCXO was designed for high audio quality in mind to provide extreme precision frequency (+-10ppb) and reduces phase noise.

24K GOLD CIRCUIT TRACE
The 24K circuit trace on our PCB is needed to match our power supply which able to provide extra stability for the oscillator module.

ULTRA STABLE REGULATOR DESIGN

With our new design, we are able to achieve the measure we needed for the oscillator.

OCXO CIRCUIT - Specifications
▪ Military Spec OCXO
▪ 2oz Copper PCB +/- 10ppb
▪ Ultralow Jitter <1ps RMS

USB Port Output Power
▪ Output voltage : +5.0V(+0.5V, -0.25V)
▪ Over current protection : 1.5A at 20°C
▪ Recommend output current : 0.5A >

OS support
▪ Windows 7 or higher version
▪ Linux
